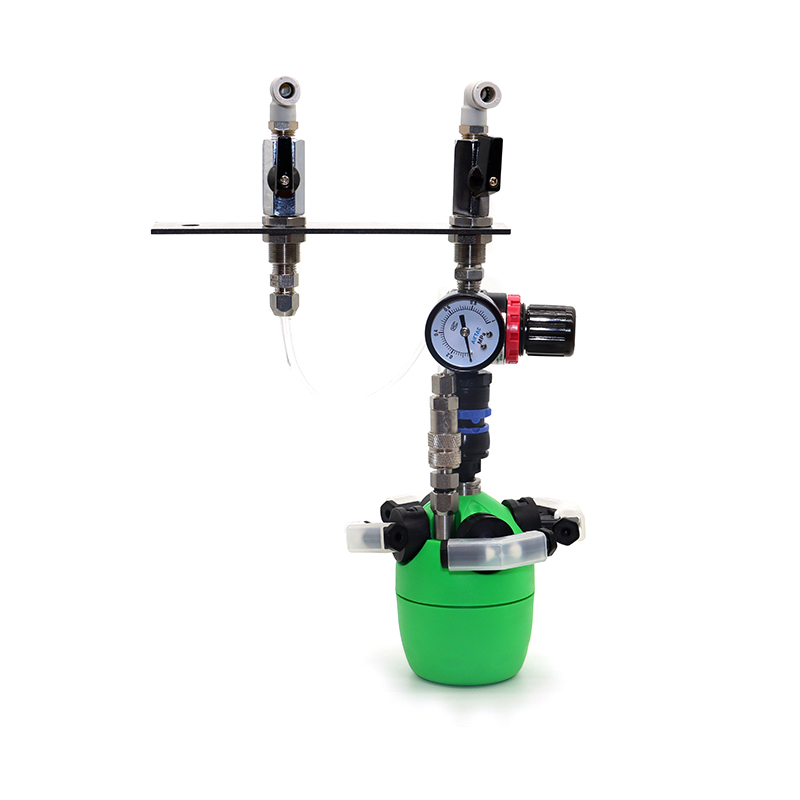

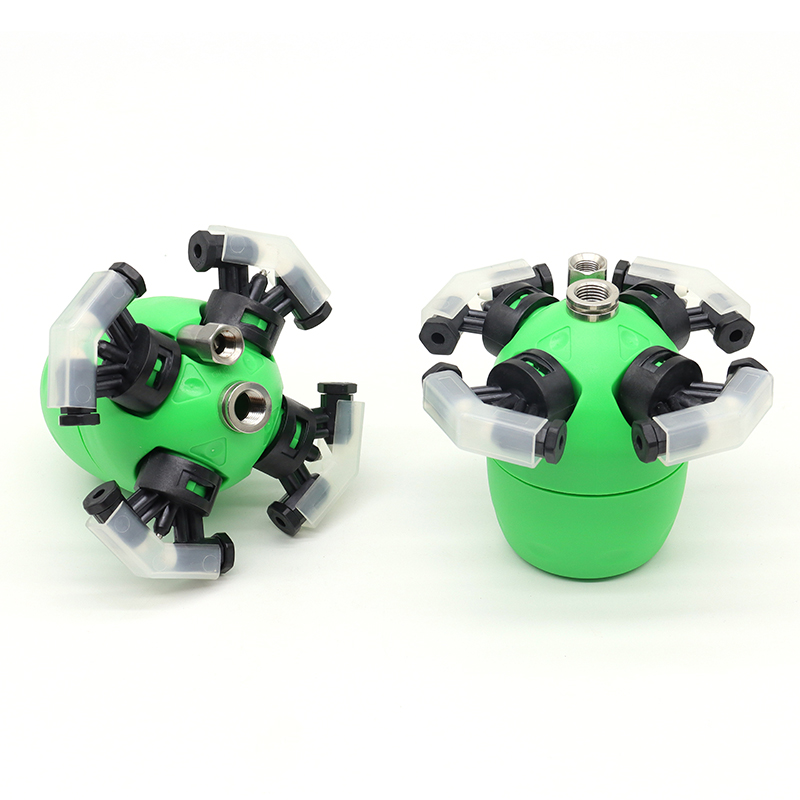

None Wetting Dry Fog Humidifier Industrial Dry Fog Spray Nozzle Humidification System

Item No.: AE-Series
Our None Wetting Dry Fog humidifier system are high performance, immediate use at any place just with air supply.
Non-wetting Dry Fog Humidifier system use of two-fluid atomization that can achieve a fine atomization effect, with average particle sizes of 7-10 microns, with a humidification capacity up to 9.6 liters per hour. This industrial humidity controller sparyer fog maker machine humidifier with a special design, the normal humidification nozzle to save more than 20% of air consumption, each humidifier can cover an area of 100 square meters for humidification disinfection and deodorization,etc

We define Dry Fog as a very fine fog with a uniform mean droplet diameter (mean fog droplet size) of 10μm or less. Because Dry Fog’s exceedingly fine spray droplets remain intact without bursting when they come into contact with objects such as walls and people, they do not wet the impacted surfaces nor the nearby environment. “Dry mist,” despite its similar name, has much larger droplets than Dry Fog and has no specified droplet diameter as part of its definition. Dry mist droplet sizes vary significantly by producer and product.

  • Product name: Dry fog humidifier
    Core Components: nozzle
    Color: Green
    Place of Origin: Guangdong, China
    Brand Name: MERIDA
    Model: AE
    Particle size: Average 7.5um
    Air pressure: 0.3MPa
    Water pressure: 0.2MPa
    Spray volume: 2.4L /h, 4 Nozzle Tips
    Nozzle numbers installed: 4 nozzles
    Application: Humidification, Dust Control, Odor Control
    Certificate: ISO9001, IATF16949
    Warranty: 1 Year
    Water pressure: 0.2MPa
  • -High performance humidifier, most compact in the world, maximum humidifying capacity up to 9.6L/h (air pressure is 0.3MPa).
    -Quick disassembly, easy maintenance
    -Remarkable humidification effect, the national patented dry fog humidifier nozzle provides high-quality mist spray, with jet length over 4mm.
    -Use ultra-small water storage tanks, which can’t easily multiply bacteria.
    -Adopt high-tech nozzles, not easy to be blocked.
    -Automatic control by timer and controller.
    -No need to clean the humidifier if a pure water processor is used.
    The working area for once battery charging :≥1500m²
  • -Printing, textile, paper mills
    -Localized humidification and anti-electrostatic around the machine
    -Anti-electrostatic in plastic and film factories and dry fog cooling
    -Humidification for various materials
    -Humidification in the freezer of vegetables, fruits and fresh food
    -Gardening, greenhouse humidification Poultry farms
    -Disinfection and deodorization of garbage dumps
    -Timed automatic humidification and automatic disinfection
    -When a small amount of dry fog is required
    -When installing a humidifier
Airpressure(MPa) Capacity(L/H) Air consumptipn(N.L/min)
0.3 2.4 29
0.35 2.7 32.5
AE Series
*When air pressure is 0.3MPa
Capacity(L/H) Air consumptipn(N.L/min) Number of Nozzles
2.4 29 1
4.8 58 2
7.2 87 3
9.6 116 4
